Melu Instruments released Freak Phase Synchronized Dual Oscillator Eurorack Module

SYNTH ANATOMY uses affiliation & partner programs (big red buttons) to finance a part of the activity. If you use these, you support the website. Thanks!

Melu Instruments released a new digital Eurorack oscillator with an excellent sound for 345€
Check out the features of this new oscillator.

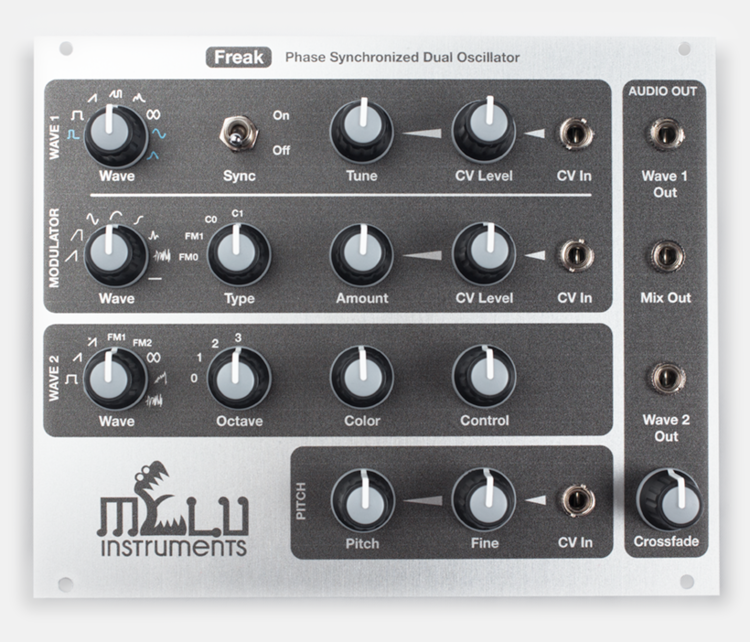

Phase Synchronized Dual Oscillator

Freak is a dual oscillator for Eurorack modular synthesizers. The two digital oscillators can be phase synchronised with each other and have dedicated audio outputs. This makes it easy to process them separately while resulting in sharp and well defined bass and lead sounds. The integrated audio rate modulator creates complex and interesting timbres in an instant.


















Main Features
  • Two digital oscillators + one audio rate modulator
  • Oscillator 1:
    • 8 waveforms
    • Each waveform has a synthesis method specific control parameter which can be modulated with the audio rate modulator.
      • Wave 1 = PWM
      • Wave 2-6 = Phase Modulation
      • Wave 7-8 = Timbre
    • Syncable to the audio rate modulator
    • CV input for controlling tune
    • Dedicated audio output
  • Audio rate modulator:
    • 8 waveforms
    • Modulates Oscillator 1 with 4 possible modulation modes
      • Frequency modulation at octave 0
      • Frequency modulation at octave 1
      • Control parameter modulation at octave 0
      • Control parameter modulation at octave 1
    • CV input for controlling modulation amount
  • Oscillator 2:
    • 8 waveforms with two controllable parameters each:
      • Pulse = PWM / Phase Modulation
      • Double Saw = Saw mix amount / Phase Modulation
      • Multisaw = Number of saw waveforms / Wave spread
      • Gnarl = FM Timbre 1 / FM Timbre 2
      • Whoosh = FM Timbre 1 / FM Timbre 2
      • Blip = Phase Distortion / FM Timbre
      • Noise Mod = FM noise amount / Crossfade
      • Noise = HP Filter Cutoff / LP Filter Cutoff
    • Dedicated audio output
  • 3 audio outputs:
    • Wave 1 Out
    • Wave 2 Out
    • Mix Out (crossfade between Wave 1 & 2 outputs)
  • 3 CV Inputs:
    • Global pitch CV In
    • Wave 1 tune CV In
    • Audio rate modulation amount CV In
  • Width = 31 HP
  • Power = 70 mA @ +12V, 10 mA @ -12V

Available here for 345€: Melu Instruments Freak

Check out here the sound demo of the Melu Instruments Freak Oscillator
